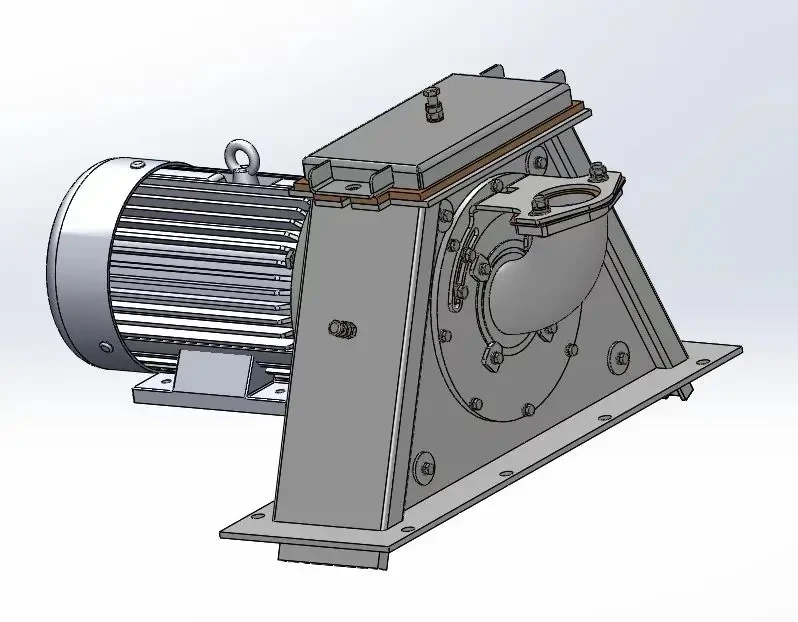

Blast Wheel Assembly

The Blast Wheel Assembly is a core component of shot blasting equipment, designed to accelerate abrasive media such as steel shots, steel grit, or cast iron particles and project them onto a workpiece surface at high velocity. This assembly is widely used in shot blasting machines, sand blasting systems, surface preparation lines, foundry cleaning, rust removal, paint stripping, and surface strengthening applications.

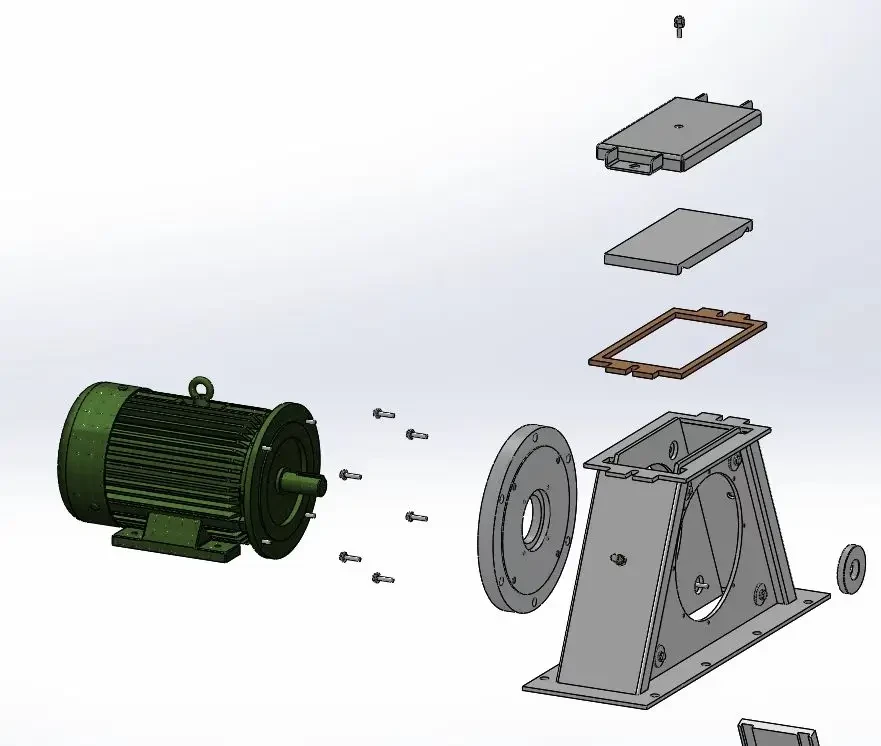

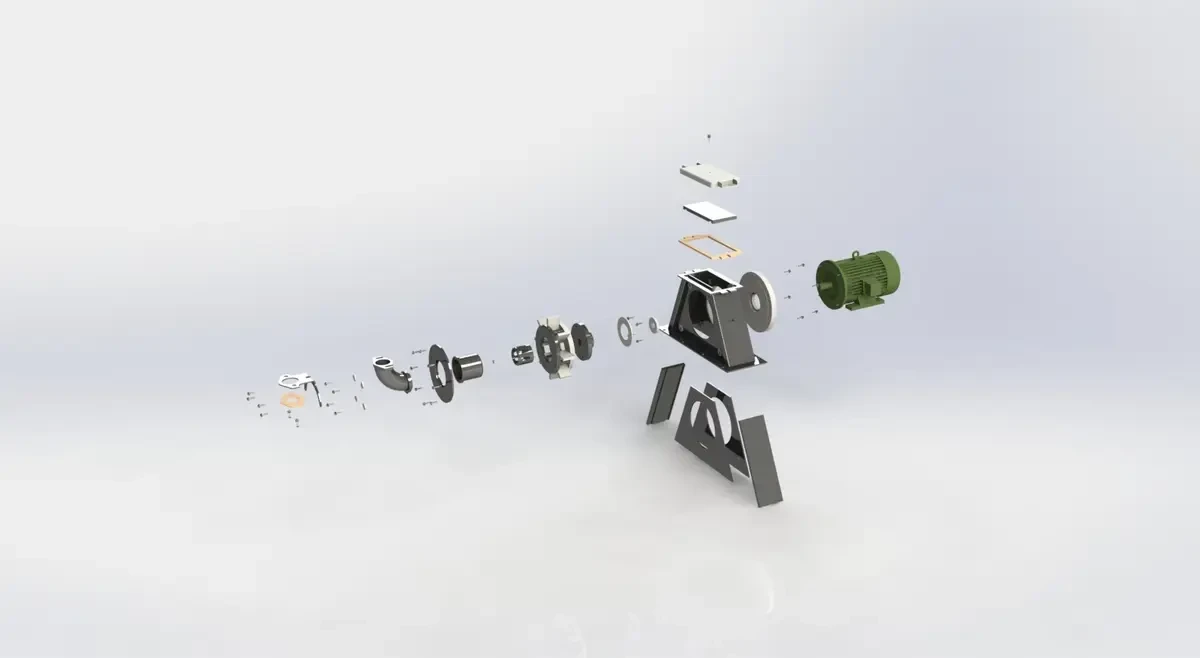

A typical blast wheel assembly includes an electric motor, coupling or direct drive shaft, bearing housing, main shaft, impeller, blades, control cage, distributor, end cover, wear liners, sealing elements, and a supporting base. The motor transmits power to the main shaft, which rotates the impeller and blades. Abrasive particles enter through the inlet pipe and are distributed by the distributor before being released through the control cage opening. The rotating blades then capture the particles and throw them outward through the blast window, creating a high-speed abrasive stream for surface treatment.

Compared with belt-driven designs, the direct drive blast wheel assembly offers simpler structure, higher transmission efficiency, less maintenance, and more stable abrasive velocity. It is especially suitable for continuous operation in industrial environments where consistent blasting performance is required.

Key features include high wear-resistant blades, precise bearing support, reliable sealing, easy assembly and disassembly, and optional liner protection. The blast wheel assembly can be configured according to different machine models, power requirements, abrasive types, and production capacity specifications.

In summary, the Blast Wheel Assembly is a critical part for ensuring cleaning efficiency, surface quality, and operational stability in shot blasting systems.
